ENCLOSED CONFIGURATION

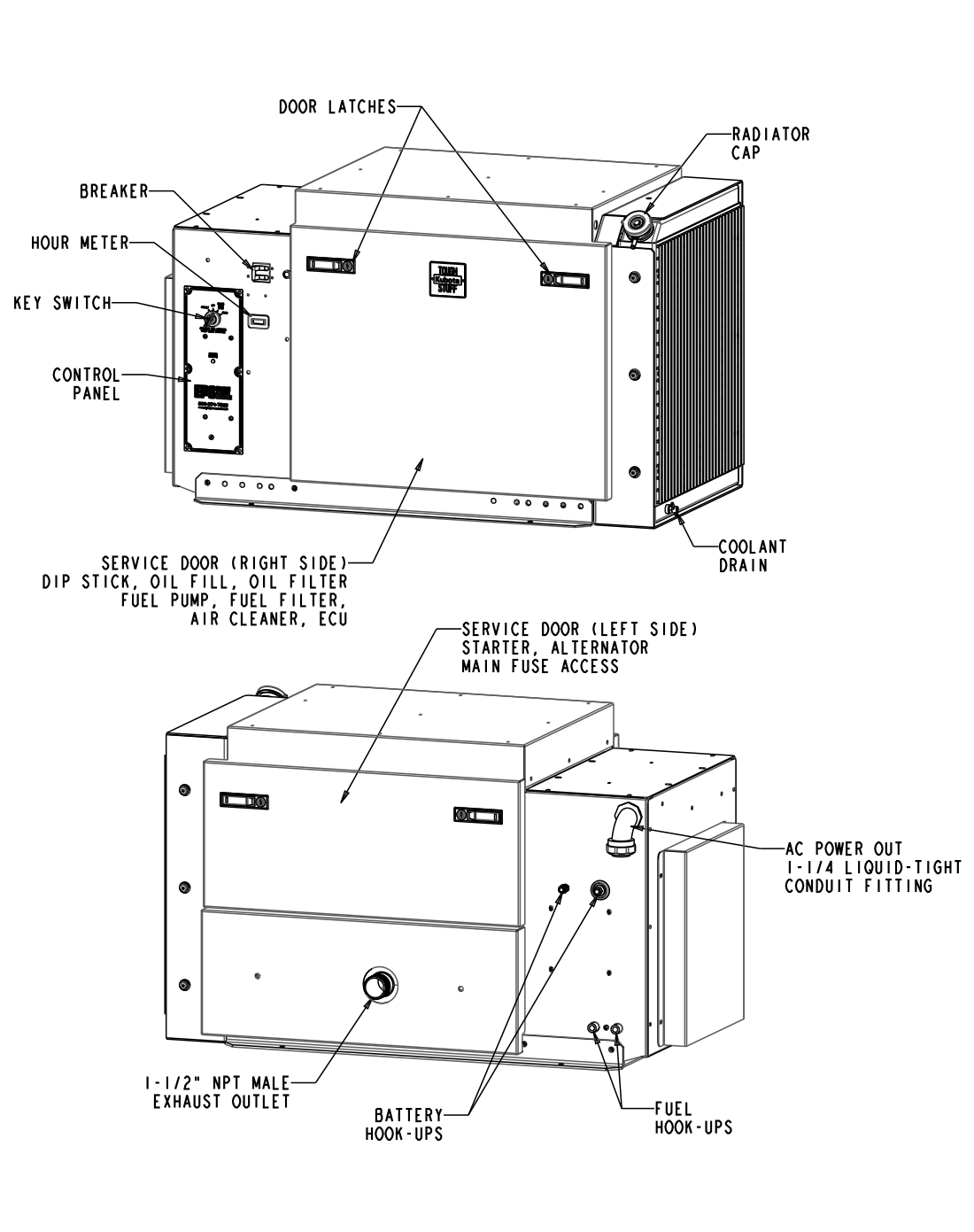

EPS 14kW Enclosed Generator

OPEN CONFIGURATION

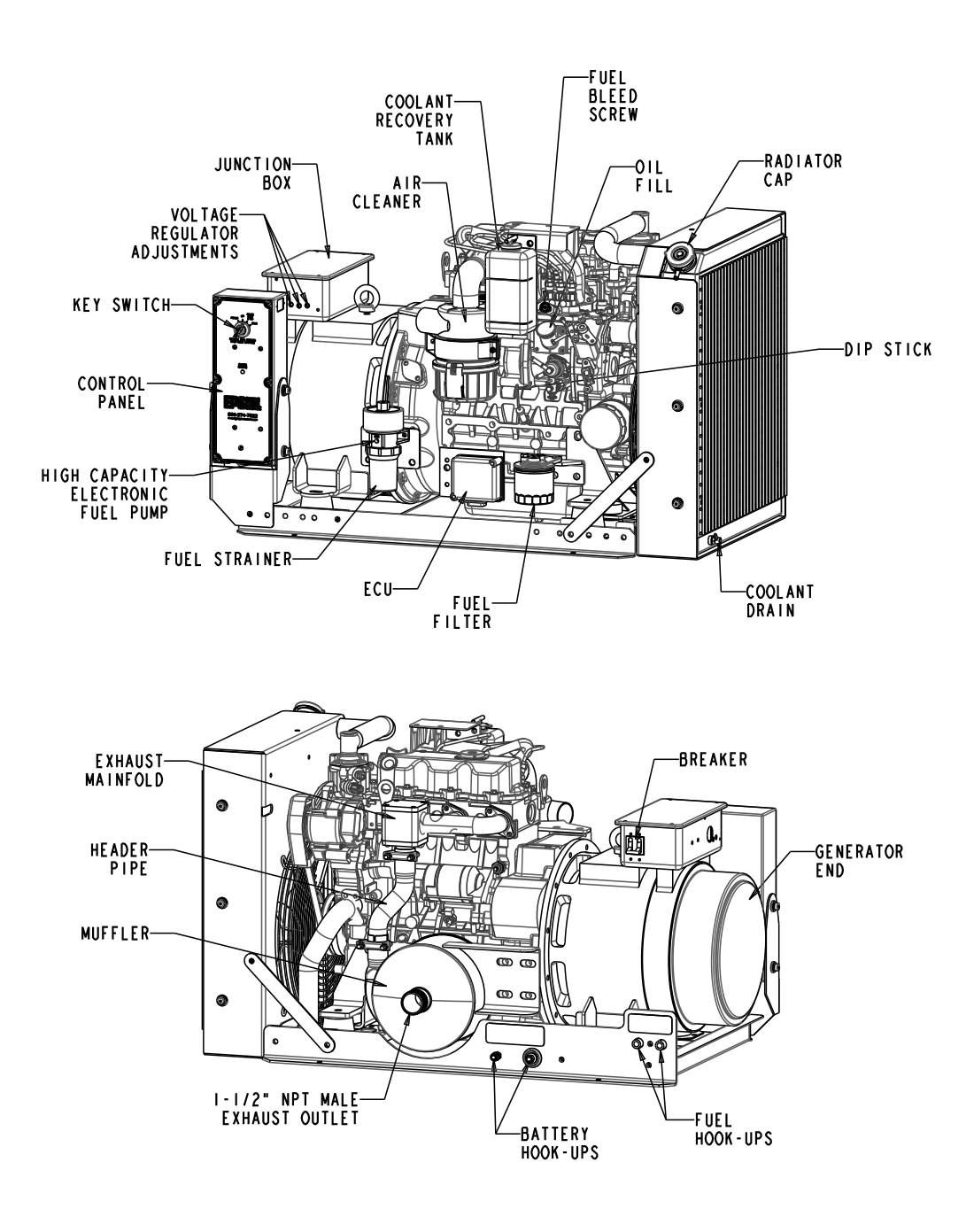

EPS 14 kW Open Generator
Powered by Kubota

EPS 14kW Tier 4 Final Diesel Mobile Generator Specifications

Configuration Enclosed Open
EPS Model Number SERIES10015MT4E SERIES10015MT4O
KW – Stand-by (1) 14.0 14.0
KW – Continuous (1) 13.3 13.3
120 / 240V (Single Phase Continuous Amps) 110.8 / 55.4 110.8 / 55.4
Engine Kubota D1503-M-E4BG Kubota D1503-M-E4BG
Fuel Consumption (US Gal./hr.) @ 25% / 50% / 100% Load .46 / .82 / 1.43 .46 / .82 / 1.43
Length (inches) 44.22 43.37
Width (inches) 25.75 25.75
Height (inches) 26.00 25.87
Weight (including oil & antifreeze) 888 lbs. 798 lbs.
(1) All unit ratings are established at 1.0 power factor, 68 degrees F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 degrees F above 68 degrees F.
(2) Sound level tests were performed on a unit in an open environment, pusher-fan model with all 5 generator cooling vents open. A typical installation will result in lower sound levels.
Illustrations shown may include optional equipment. Specifications subject to change without notice.
