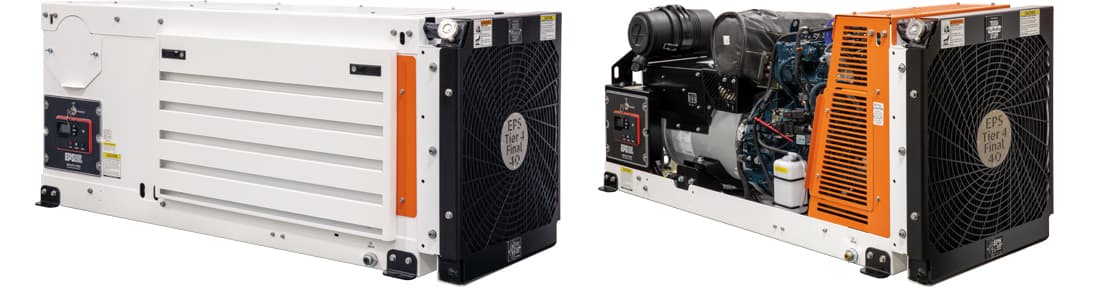

EPS 40kW Generators

ENCLOSED CONFIGURATION

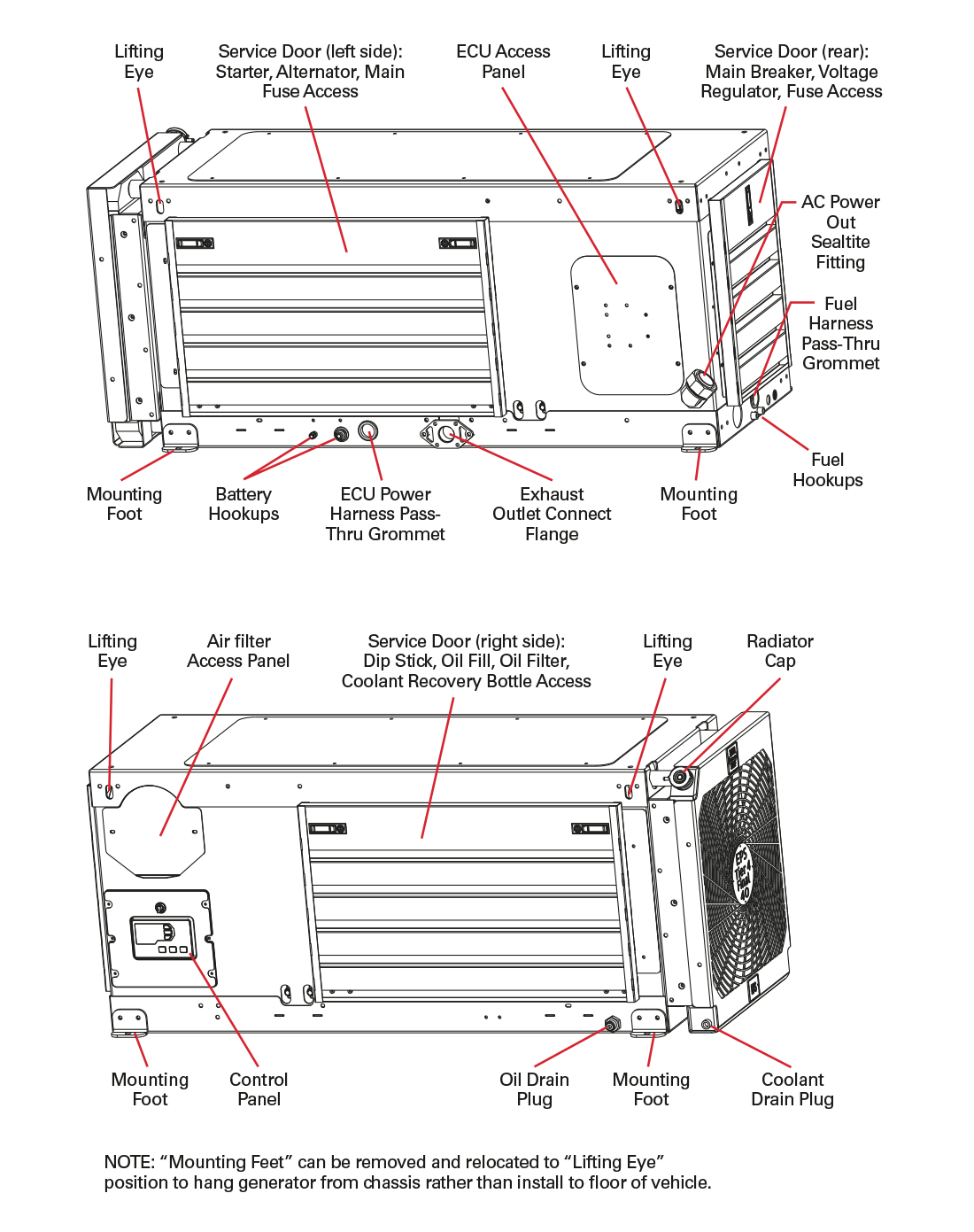

EPS 40kW Enclosed Generator

OPEN CONFIGURATION

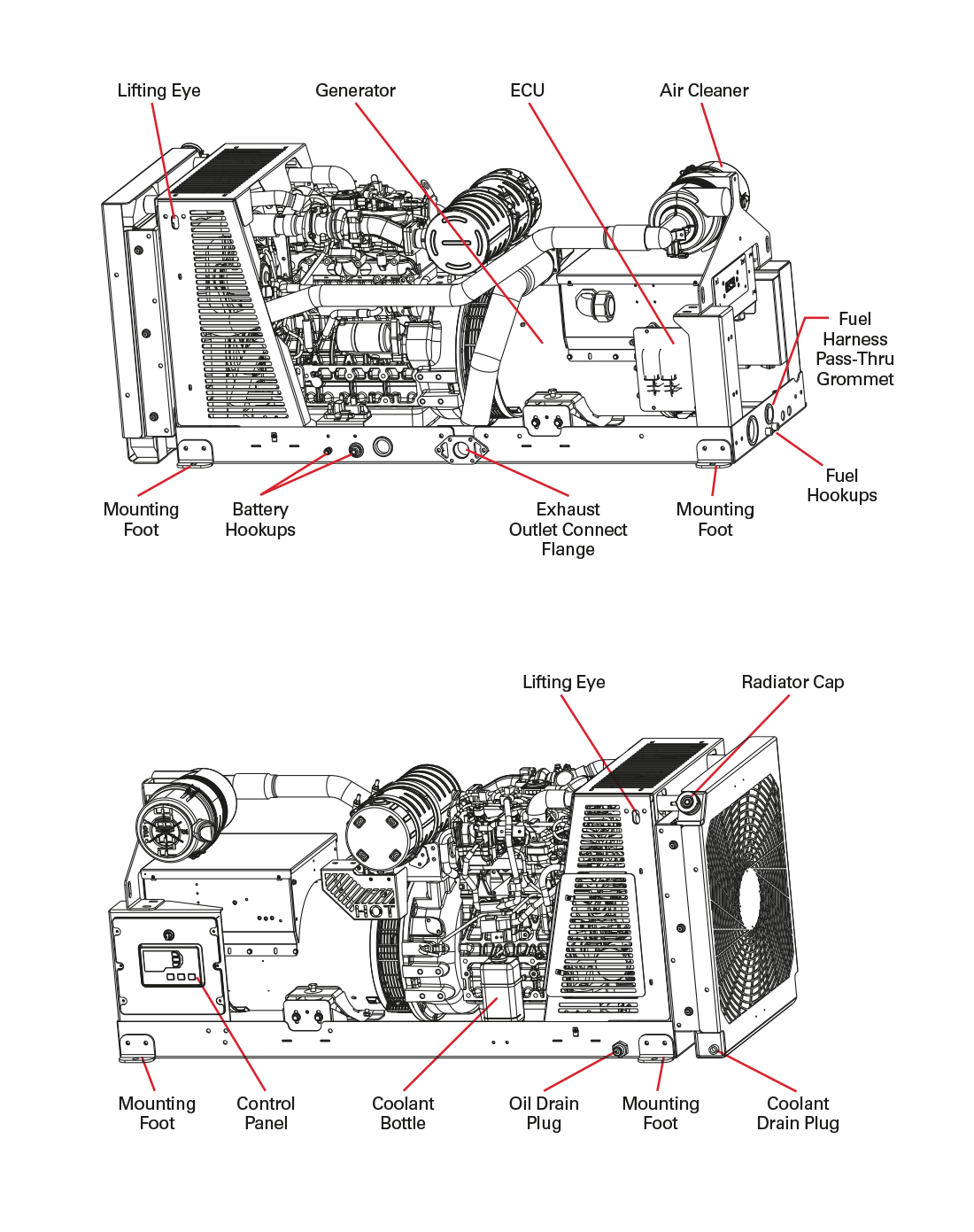

EPS 40 kW Open Generator
Powered by Kubota

EPS 40kW Mobile Generator Specifications

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 40kW Enclosed
1 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Kubota Engine Model V2403TIE4BG
2 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM kW (Stand-by) 40.0
3 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM kW (Continuous) 36.0
4 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Frequency 60hz
5 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM EPS Part Number J40KM11ESE3UU
7 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Standby Amps 334/167 @ 1.0PF
9 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Continuous Amps 300/150 @ 1.0PF
10 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM EPS Part Number J40KM83ESE4UU
12 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Voltage 120/208
13 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Standby Amps 125 @ 0.89PF
14 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Continuous Amps 125 @ 0.8PF
15 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM EPS Part Number J40KM13ESE4UU
17 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Voltage 120/240
18 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Standby Amps 120 @ 0.8PF
19 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Continuous Amps 108 @ 0.8PF
20 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM EPS Part Number J40KM43ESE4UU
22 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Voltage 277/480
23 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Standby Amps 60 @ 0.8PF
24 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Continuous Amps 54 @ 0.8PF
25 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Fuel Cons. 25% Load 0.68 US Gal/hr.
27 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Fuel Cons. 50% Load 1.37 US Gal/hr.
28 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Fuel Cons. Full Load 3.0 US Gal/hr.
29 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Weight (Single / 3-Phase)* 1,408 lbs.
30 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Length (Single / 3-Phase) 68.98 in.
31 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Width (Single / 3-Phase) 25.76 in.
32 bwaEPS2017 19/10/2026 07:46 PM bwaEPS2017 19/10/2026 07:46 PM Height (Single / 3-Phase) 28.77 in.
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 40kW Open
1 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Kubota Engine Model V2403TIE4BG
2 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM kW (Stand-by) 40.0
3 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM kW (Continuous) 36.0
4 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Frequency 60hz
5 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM EPS Part Number J40KM11OSE3UU
7 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Standby Amps 334/167 @ 1.0PF
9 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Continuous Amps 300/150 @ 1.0PF
10 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM EPS Part Number J40KM83OSE4UU
12 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Voltage 120/208
13 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Standby Amps 125 @ 0.89PF
14 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Continuous Amps 125 @ 0.8PF
15 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM EPS Part Number J40KM13OSE4UU
17 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Voltage 120/240
18 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Standby Amps 120 @ 0.8PF
19 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Continuous Amps 108 @ 0.8PF
20 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM EPS Part Number J40KM43OSE4UU
22 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Voltage 277/480
23 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Standby Amps 60 @ 0.8PF
24 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Continuous Amps 54 @ 0.8PF
25 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Fuel Cons. 25% Load 0.68 US Gal/hr.
27 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Fuel Cons. 50% Load 1.37 US Gal/hr.
28 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Fuel Cons. Full Load 3.0 US Gal/hr.
29 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Weight (Single / 3-Phase)* 1,370 lbs.
30 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Length (Single / 3-Phase) 67.13 in.
31 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Width (Single / 3-Phase) 25.76 in.
32 bwaEPS2017 19/10/2026 07:48 PM bwaEPS2017 19/10/2026 07:48 PM Height (Single / 3-Phase) 29.78 in.
* weight includes oil & antifreeze
All unit ratings are established at 1.0 power factor, 68 degrees F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 degrees F above 68 degrees F.
Sound level tests were performed on a unit in an open environment, pusher-fan model with all 5 generator cooling vents open. A typical installation will result in lower sound levels.
Illustrations shown may include optional equipment. Specifications subject to change without notice.
