EPS 920kW Standby Generator

ENCLOSED CONFIGURATION

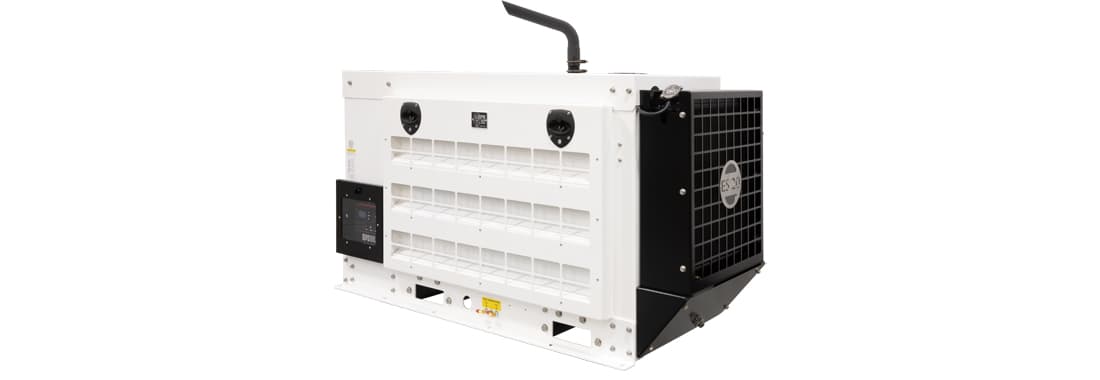

EPS 20kW Standby Generator
Powered by Kubota

EPS 20kW Standby Generator Specifications

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 20kW Standby
1 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Kubota Engine Model V2203-BG
2 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM kW (Stand-by) 20.0
3 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM kW (Continuous) 18.2
4 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Frequency 60Hz
5 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM EPS Part Number ES10020ENC
7 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Standby Amps 166.7/83.3 @ 1.0 PF
9 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Continuous Amps 160/80 @ 1.0 PF
10 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM EPS Part Number TBD
12 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Voltage 120/208-Wye
13 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Standby Amps 63 @ 0.88 PF
14 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Continuous Amps 63 @ 0.85 PF
15 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM EPS Part Number TBD
17 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Voltage 120/240-Delta
18 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Standby Amps 63 @ 0.76 PF
19 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Continuous Amps 57.7 @ 0.80 PF
20 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM EPS Part Number TBD
22 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Voltage 277/480 -Wye
23 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Standby Amps 32 @ 0.75 PF
24 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Continuous Amps 28.9 @ 0.80 PF
25 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Fuel Cons. 25% Load 0.61 US Gal/hr.
27 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Fuel Cons. 50% Load 0.97 US Gal/hr.
28 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Fuel Cons. Full Load 1.58 US Gal/hr.
29 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Weight (Single / 3-Phase)* 1278 lbs.
30 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Length (Single / 3-Phase) 67.13 in.
31 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Width (Single / 3-Phase) 29 in.
32 bwaEPS2017 19/10/2026 07:53 PM bwaEPS2017 19/10/2026 07:53 PM Height (Single / 3-Phase) 45.79 in.
* weight includes oil & antifreeze
All unit ratings are established at 1.0 power factor, 68 degrees F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 degrees F above 68 degrees F.
Sound level tests were performed on a unit in an open environment, pusher-fan model with all 5 generator cooling vents open. A typical installation will result in lower sound levels.
Illustrations shown may include optional equipment. Specifications subject to change without notice.
