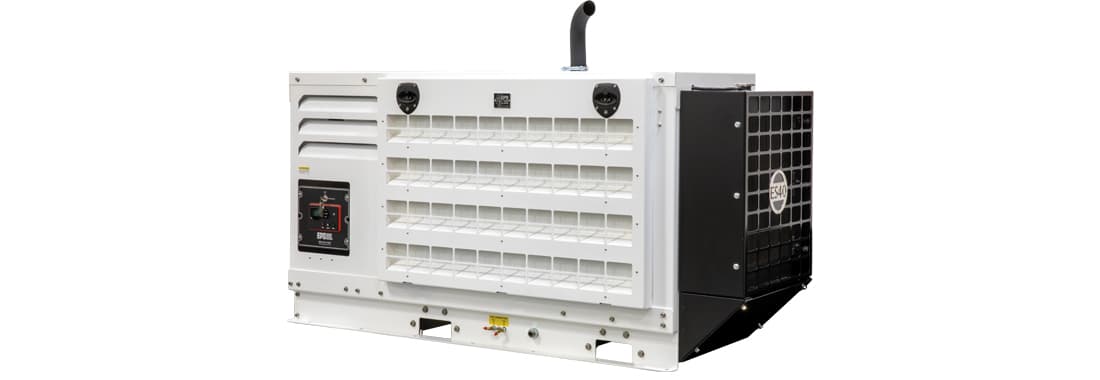

EPS 40kW Standby Generator

ENCLOSED CONFIGURATION

EPS 40kW Standby Generator
Powered by Kubota

EPS 40kW Standby Generator Specifications

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 40kW Standby
1 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Kubota Engine Model V2403TIE4BG
2 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM kW (Stand-by) 40.0
3 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM kW (Continuous) 36.3
4 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Frequency 60hz
5 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM EPS Part Number ES10040ENC
7 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Standby Amps 350/175 @ 0.95 PF
9 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Continuous Amps 302/151 @ 1.0 PF
10 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM EPS Part Number E40KN83EUEXUZZ
12 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Voltage 120 / 208-Wye
13 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Standby Amps 125 @ 0.89 PF
14 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Continuous Amps 125 @ 0.81 PF
15 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM EPS Part Number E40KN13EUEXUZZ
17 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Voltage 120 / 240-Delta
18 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Standby Amps 125 @ 0.77 PF
19 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Continuous Amps 109 @ 0.80 PF
20 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM EPS Part Number E40KN43EUEXUZZ
22 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Voltage 277 / 480-Wye
23 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Standby Amps 60 @ XX0.80 PF
24 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Continuous Amps 54.6 @ 0.80 PF
25 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Fuel Cons. 25% Load 0.75 US Gal/hr.
27 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Fuel Cons. 50% Load 1.506 US Gal/hr.
28 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Fuel Cons. Full Load 3.00 US Gal/hr.
29 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Weight (Single / 3-Phase)* 1639.00 lbs.
30 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Length (Single / 3-Phase) 85.61 in.
31 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Width (Single / 3-Phase) 29.0 in.
32 bwaEPS2017 19/10/2026 07:54 PM bwaEPS2017 19/10/2026 07:54 PM Height (Single / 3-Phase) 57.0 in.
* weight includes oil & antifreeze
All unit ratings are established at 1.0 power factor, 68 degrees F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 degrees F above 68 degrees F.
Sound level tests were performed on a unit in an open environment, pusher-fan model with all 5 generator cooling vents open. A typical installation will result in lower sound levels.
Illustrations shown may include optional equipment. Specifications subject to change without notice.
