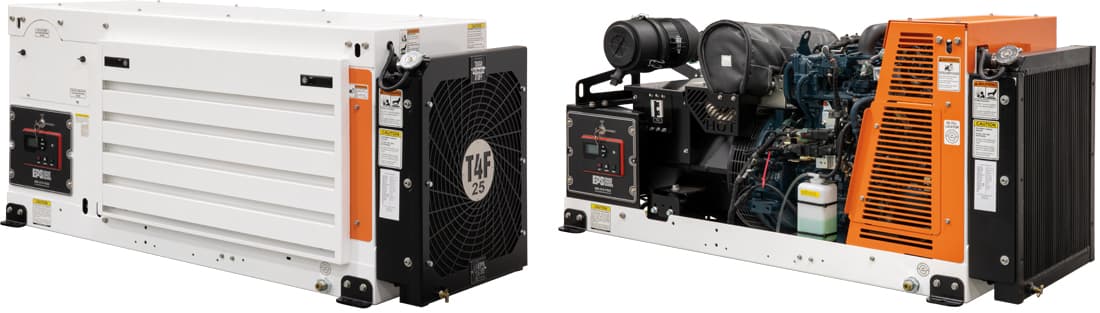

EPS 25kW Generators

ENCLOSED CONFIGURATION

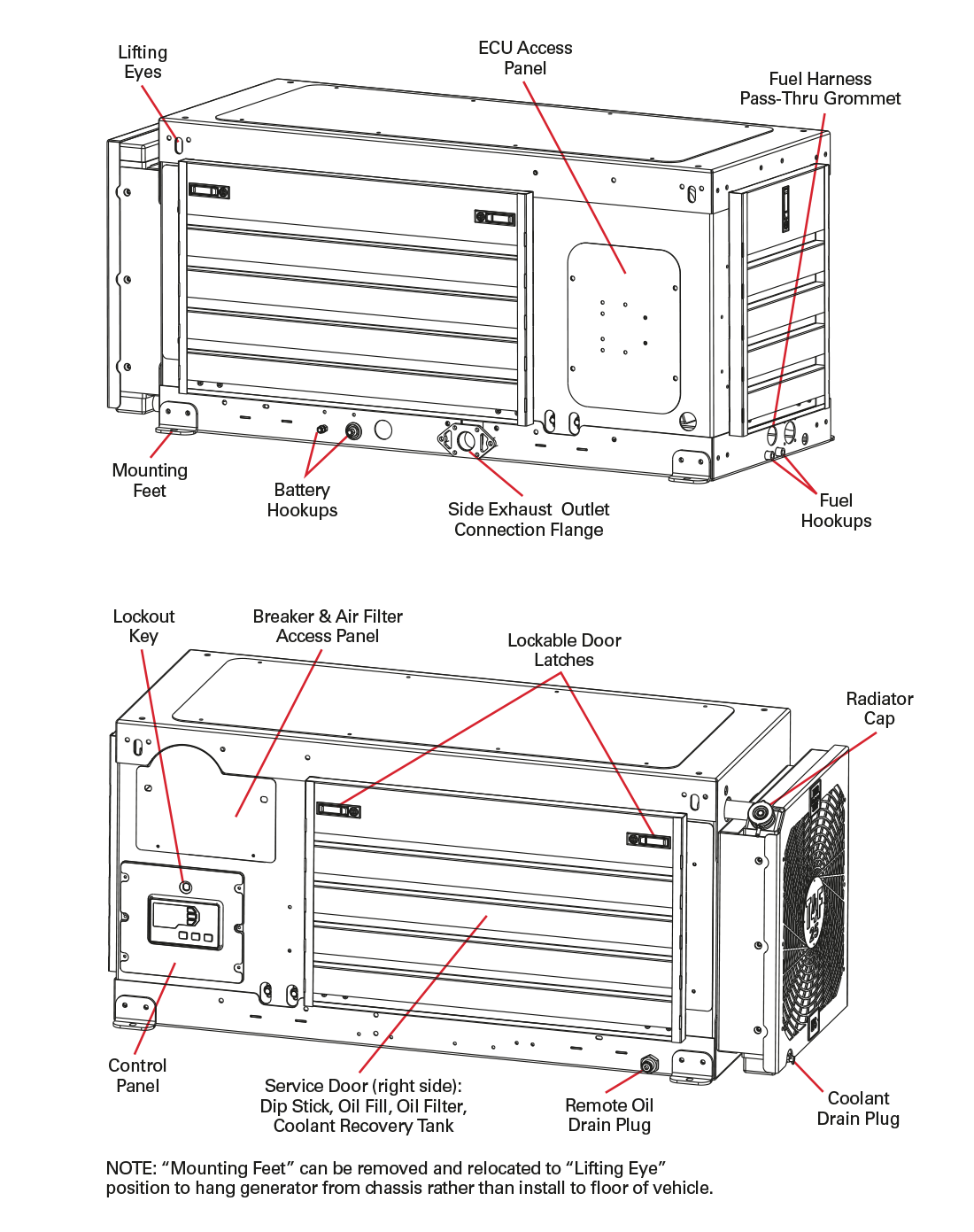

EPS 25kW Enclosed Generator

OPEN CONFIGURATION

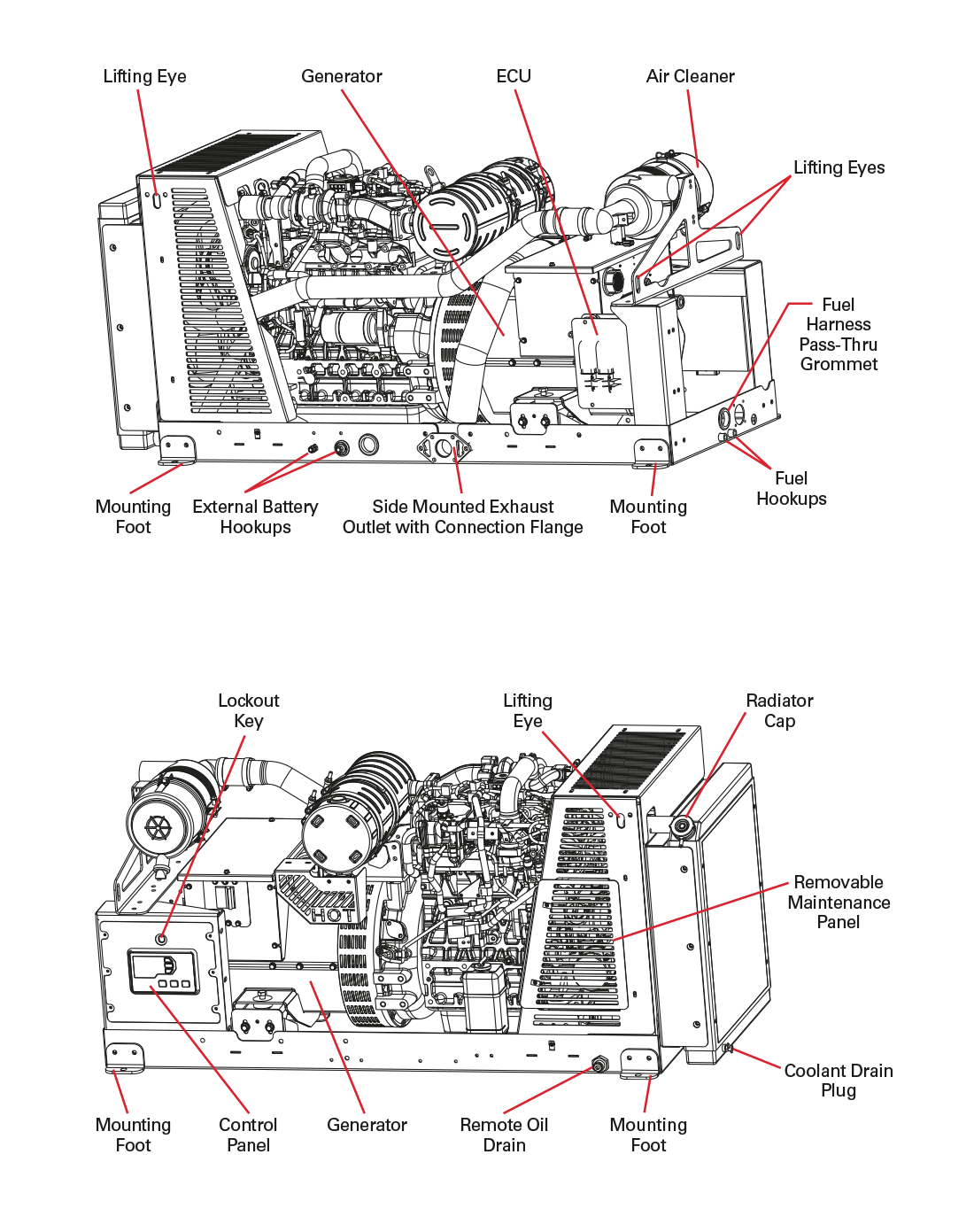

EPS 25 kW Open Generator
Powered by Kubota

EPS 25kW Mobile Generator Specifications

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 25kW Enclosed
1 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Kubota Engine Model V2403TE4BG-EPS1
2 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM kW (Stand-by) 25
3 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM kW (Continuous) 24
4 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Frequency 60Hz
5 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM EPS Part Number J25KA11ESE3UU
7 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Standby Amps 208/104 @ 1.0 PF
9 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Continuous Amps 200/100 @ 1.0 PF
10 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM EPS Part Number J25KA83ESE4UU
12 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Voltage 120/208
13 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Standby Amps 80 @ 0.87 PF
14 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Continuous Amps 83.3 @ 0.80 PF
15 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM EPS Part Number J25KA13ESE4UU
17 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Voltage 120/240
18 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Standby Amps 63 @ 0.95 PF
19 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Continuous Amps 63 @ 0.92 PF
20 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM EPS Part Number J25KA43ESE4UU
22 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Voltage 277/480
23 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Standby Amps 40 @ 0.75 PF
24 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Continuous Amps 36 @ 0.80 PF
25 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Fuel Cons. 25% Load 0.44 US Gal/hr
27 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Fuel Cons. 50% Load 0.88US Gal/hr
28 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Fuel Cons. Full Load 1.93 US Gal/hr
29 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Weight (Single / 3-Phase)* 1,190 lbs.
30 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Length (Single / 3-Phase) 63.62 in.
31 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Width (Single / 3-Phase) 25.76 in.
32 bwaEPS2017 19/10/2026 07:40 PM bwaEPS2017 19/10/2026 07:40 PM Height (Single / 3-Phase) 28.64 in
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Confguration 25kW Open
1 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Kubota Engine Model V2403TE4BG-EPS1
2 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM kW (Stand-by) 25
3 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM kW (Continuous) 24
4 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Frequency 60Hz
5 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Single Phase Configuration:
6 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM EPS Part Number J25KA11OSE3UU
7 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Voltage 120/240
8 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Standby Amps 208/104 @ 1.0 PF
9 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Continuous Amps 200/100 @ 1.0 PF
10 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Three Phase Configuration 1:
11 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM EPS Part Number J25KA83OSE4UU
12 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Voltage 120/208
13 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Standby Amps 80 @ 0.87 PF
14 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Continuous Amps 83.3 @ 0.80 PF
15 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Three Phase Configuration 2:
16 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM EPS Part Number J25KA13OSE4UU
17 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Voltage 120/240
18 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Standby Amps 63 @ 0.95 PF
19 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Continuous Amps 63 @ 0.92 PF
20 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Three Phase Configuration 3:
21 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM EPS Part Number J25KA43OSE4UU
22 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Voltage 277/480
23 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Standby Amps 40 @ 0.75 PF
24 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Continuous Amps 36 @ 0.80 PF
25 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM All Configurations:
26 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Fuel Cons. 25% Load 0.44 US Gal/hr
27 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Fuel Cons. 50% Load 0.88US Gal/hr
28 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Fuel Cons. Full Load 1.93 US Gal/hr
29 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Weight (Single / 3-Phase)* 1,190 lbs.
30 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Length (Single / 3-Phase) 63.62 in.
31 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Width (Single / 3-Phase) 25.76 in.
32 bwaEPS2017 19/10/2026 07:42 PM bwaEPS2017 19/10/2026 07:42 PM Height (Single / 3-Phase) 28.64 in
* weight includes oil & antifreeze
All unit ratings are established at 1.0 power factor, 68 degrees F and 500 ft. above sea level. De-rate unit by 3.5% for every 1000 ft. above 500 ft. and 1% for every 10 degrees F above 68 degrees F.
Sound level tests were performed on a unit in an open environment, pusher-fan model with all 5 generator cooling vents open. A typical installation will result in lower sound levels.
Illustrations shown may include optional equipment. Specifications subject to change without notice.
